Drying furnace

Drying furnace acts as drying treatment for moisture, solvent, adhesive and others with various heat source(capacity).
Considering fast drying and stable quality, from automatic drying equipment with conveying system to batch type drying equipment, we are able to provide the equipment that customers require.
The furnace is equipped with deodorizing capability that clears the issue of exhaust odor occurs during the drying process. We also propose to use the waste heat from the exhaust generated from deodorizing process for drying process, eco-friendly.

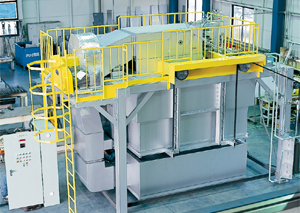

Incombustible fabric drying equipment

Upper part of the furnace can be hoisted. When supplying the material, the part is raised and it is lowered when the setting is completed then it is dried with the hot blast. With the strong up-blow wind, it makes possible to keep high speed and steady drying condition.

Incombustible fabric drying equipment

Equipment Incombustible fabric drying equipment
External size W4,650xL3,000xH4,000
Temperature controlled 160±10 ℃
Heat source (capacity) LPG(464kW)
Material External: painted steel plate

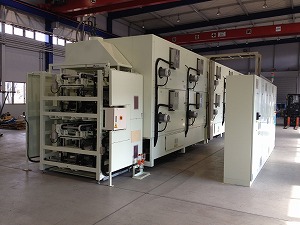

Panel type heat treatment furnace

The heat treatment of large panels of the upper and lower two-stage method. This method has achieved high productivity.
Structure by a special nozzle in the furnace, the temperature distribution over the entire panel is kept within 5 ℃ ±. In the downstream part is also included cooling zone.

Panel type heat treatment furnace

Equipment Panel type heat treatment furnace
External size W2,500xL20,000xH3,000
Temperature controlled 200℃
Heat source Electric heater
Carrier device Chain conveyor system

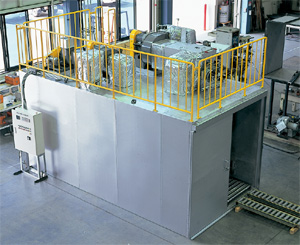

Drying equipment for automatic vending machine

During the process of vending machine manufacturing, it is to be washed and cleaned. The equipment is to dry the machine after cleaning.
The vending machines are conveyed with free-roller conveyer and passed through the drying equipment and dried with high temperature hot blast.

Drying equipment for automatic vending machine

Equipment Drying equipment for automatic vending machine
External size W2,600xL5,000xH2,450
Temperature controlled MAX80℃
Heat source (capacity) LPG(116kW)
Material External: painted steel plate

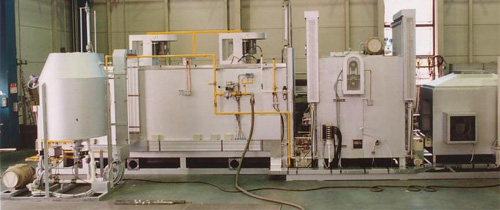

Drying equipment with deodorizing unit

Automatic conveyer carries the goods and it is automatically processed to pre-dry, main-dry, cooling and sent out.
Deodorizing equipment with direct combustion system is equipped to clear the exhaust odor gas that gets generated during the drying process

Drying equipment with deodorizing unit
Equipment Drying equipment with deodorizing unit
External size W2,900xL9,200xH2,000
Temperature controlled 150~400℃(Regular 200 ℃)
Heat source (capacity) LNG(74kW)
Material External: painted steel plate

Batch type drying furnace

Heat source (capacity) is using an electric heater, so everything can dry batch.
Size and shape and temperature can provide products according to your specifications.

Equipment Batch type drying furnace
External size W2,000xL1,300xH1,850
Temperature controlled MAX100 ℃
Heat source
(capacity)
Electric heater(25kW)
Material External: painted steel plate
Batch type drying furnace
