Deodorizing equipment

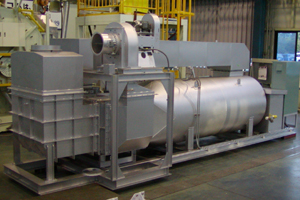

Deodorizing equipment with direct combustion system

Odor is heated with the temperature approx. 650~800℃, the odor element in the exhaust becomes oxidized and decomposed with high temperature then the equipment makes the exhaust harmless.

Deodorizing equipment with direct combustion system


Equipment Deodorizing equipment with direct combustion system
30Nm3/min
Size W2,200xD5,000xH2,500
Temperature controlled 750℃
Heat source LPG(350kW)
Material Exterior: painted steel plate
Remark Temperature efficiency 50%
Heat exchange unit installed

Deodorizing equipment with catalytic combustion system

Odor is heated with 200 to 300℃ and put through the catalyst. The odor element oxidized, decomposed and become harmless.

Deodorizing equipment with catalytic combustion system


Equipment Deodorizing equipment with catalytic combustion system 200Nm3/min
Size W2,500xD8,000xH2,900
Temperature controlled 350℃
Heat source LPG(580kW)
Material Exterior: painted steel plate
Remark Pretreatment + Platinum catalyst

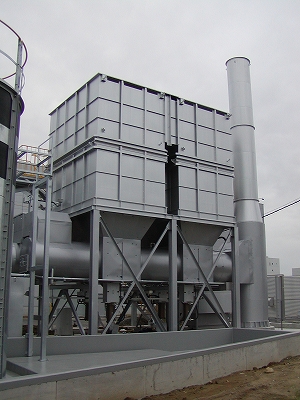

Deodorizing equipment with heat reserve combustion system

The system is same as direct combustion system. The exhaust is passed through the heat reservoir with high heat exchange efficiency. Heat carried by the exhaust is absorbed by the heat reservoir. The heat increases temperature of the exhaust and deodorized in the combustion chamber. This higher heat exchange efficiency system makes it possible to decrease the consumption of the fuel a lot lower than the direct combustion system.

Deodorizing equipment with heat reserve combustion system


Equipment Deodorizing equipment with heat reserve combustion system 600Nm3/min
Size W7,500xD15,400xH12,000
Temperature controlled 300℃
Heat source LPG(930kW)
Material Exterior: painted steel plate
Remark Honeycomb ceramics heat reservoir

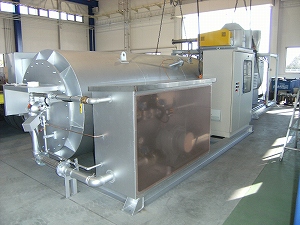

Hybrid deodorizing equipment
(direct combustion system + catalyst combustion system)

This direct combustion system and catalytic combustion system are connected and became a hybrid combustion system. The system is suited when the direct combustion system does not completely extinguish the odor. Direct combustion system recovers the exhaust and reuse it. The temperature of the heat is 400℃ and can be applied for catalyst combustion system then the exhaust will be oxidized.

direct combustion system + catalyst combustion system


Equipment Direct and catalyst combustion system
53Nm3/min
External size W2,900xD8,400xH2,000
Temperature controlled Direct 750℃ + Catalyst 470℃
Heat source (capacity) LPG(490kW)
Material Exterior: painted steel plate
Remark Temperature efficiency 50%
Heat exchanger installed
Pretreatment + Platinum catalyst

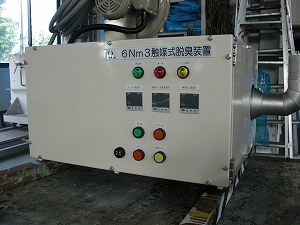

Catalytic ammonia deodorizing equipment

The system is electrically heated catalytic deodorizing equipment. It oxidizes and decomposes ammonia gas with odor.

Catalytic ammonia deodorizing equipment

Equipment Catalytic ammonia deodorizing equipment
0.6Nm3/min
External size W560xD1,000xH720
Temperature controlled 250℃
Heat source (capacity) Electric heater(5kw)
Material Exterior: painted steel plate
Remark Deodorizing efficiency 95% or more

Garbage odor deodorizing equipment

With catalytic combustion system, it oxidizes and decomposes odor from the garbage and make the exhaust harmless.

Metal Honeycomb Catalysts

Equipment Garbage odor deodorizing equipment
1~2Nm3/min
External size W400xL1,350
Temperature controlled 300℃
Heat source (capacity) Electric heater(5~13kw)
Material Platinum catalyst
Remark Simple heat exchange unit installed
